APPLICATION
As a means to bridge the gap between capacitors and batteries, supercapacitors can be used in a large variety of applications. They can primarily be found in applications that require rapid charge and discharge cycles, such as in automobiles where they are used for regenerative braking, rather than in applications that require long-term compact energy storage like smartphones and consumer-grade devices. Smaller supercapacitor units are used as a backup power system for static random-access memory (SRAM)Product Introduction
Small Super Capacitors 360F 2.7V, Low Internal Resistance, High Power, High Temperature Resistance, High Charge And Discharge Efficiency For Electrical Tools, Solar Street Light, Smart Water Meter RoHS CompliantProduct Parameter

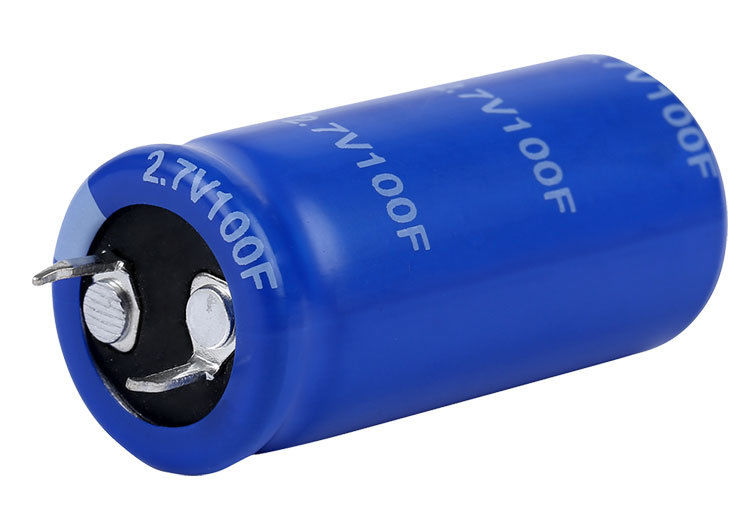

Type: Super Capacitors Sleeve Color: Blue Capacitance: 100F Rated Voltage: 2.7 V Surge Voltage: 2.85 V Operating Temperature Range: -40℃～+70℃ Capacitance Tolerance: ±20% or required values Size(D*L/Mm): 22*45mm AC Impedance (1KHZ): 8mΩ DC impedance: 12mΩ Maximum Operating Current(△T=15℃): 6.60 A Maximum Peak Current: 61.36A Maximum Leakage Current(72hrs): 0.260mA Power Density: 3391(W/Kg) Maximum Storage Energy: 0.1013W.h Energy Density: 4.71 (W.H/kg) Weight(G): 0.0215 Kg Packing: Bulk PackingProduction Details
| 2.7V 100F Super capacitor dimension (mm) | |
| D(+1.0) | 22.0 |
| L(±2.0) | 45.0 |
| Part Number | Rated Voltage(V) | Rated Cap. (F) | Size | ESR AC(1kHz/mΩ) | ESR DC(1kHz/mΩ) | Max. Operating Current(A) (△T=15℃) | Max. Peak Current(A) | Max. Leakage Current(72hrs)(mA) | Power Density(W/kg) | Max. Energy(w.H) | Energy Density (Wh.kg) |
| HLS2R7V107TZ2245 | 2.7 | 100 | 22*45 | 8.0 | 11.2 | 6.84 | 63.68 | 0.240 | 3633 | 0.1013 | 4.71 |
| HLS2R7V127TZ2250 | 2.7 | 120 | 22*50 | 7.5 | 10.5 | 7.40 | 71.68 | 0.300 | 3068 | 0.1215 | 4.50 |
| HLS2R7V157TZ2550 | 2.7 | 150 | 25*50 | 7.0 | 9.8 | 8.22 | 81.98 | 0.400 | 2705 | 0.1519 | 4.60 |
| HLS2R7V227TZ3050 | 2.7 | 220 | 30*50 | 6.0 | 8.4 | 9.83 | 104.28 | 0.520 | 2340 | 0.2228 | 5.01 |
| HLS2R7V257TZ3055 | 2.7 | 250 | 30*55 | 5.5 | 7.7 | 10.71 | 115.38 | 0.580 | 2470 | 0.2531 | 5.50 |
| HLS2R7V367TZ3560 | 2.7 | 360 | 35*60 | 4.0 | 5.4 | 14.49 | 165.08 | 0.850 | 2282 | 0.3645 | 5.13 |
| HLS2R7V407TZ3566 | 2.7 | 400 | 35*66 | 3.5 | 4.7 | 16.15 | 186.85 | 1.000 | 2178 | 0.4050 | 4.77 |
FEATURES
Cap Values from 100F – 400F 2.7V Small size and low resistance Low Leakage Current High pulse power capability Quick charge and discharge RoHS compliantFAQ
Deliver, Shipping And Service Delivery Period: 3~15 days Customized Service: OEM available After Sales Service: Operation Requirements And Precautions Hot Tags: small super capacitors, China, manufacturers, suppliers, factory, customized, wholesale, price, quotation, in stock
