Description

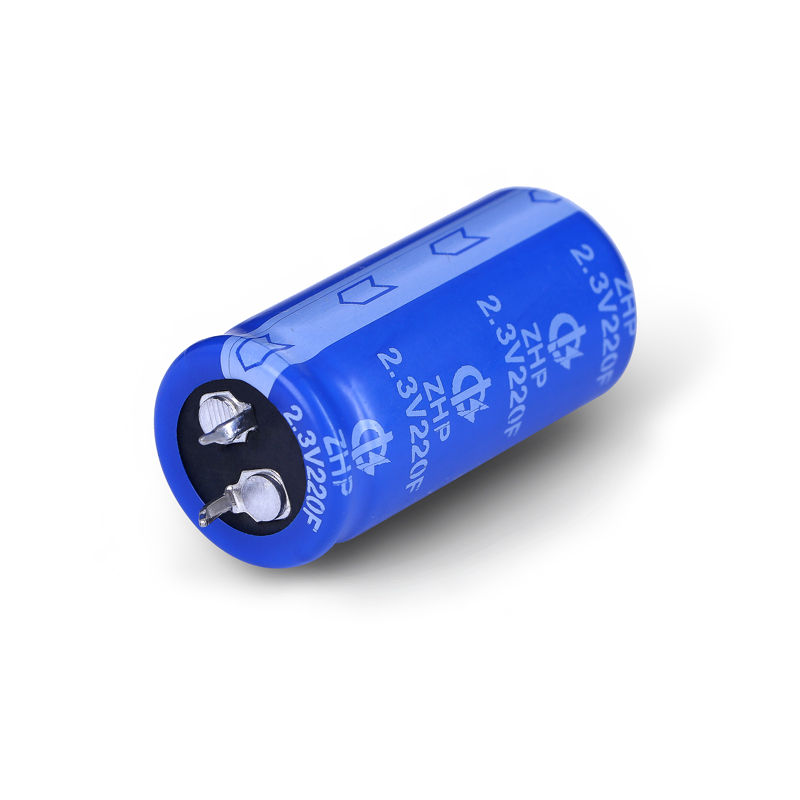

220f supercapacitor 2.3v high Quality Radial Lead Factory directly manufacturing and supply of 220f supercapacitor 2.3v Radial Lead.- Operating temperature range: -25℃ ~ +65℃
- Capacitance tolerance value: -20% ~ +50%
- Size: 22*45mm
- Max ESR(AC): 15(1kHzmΩ)
- Max ESR(DC): 27mΩ
- Max Endurance Current: 4.29 A
- Max Peak Current: 36.46A
- Max Leakage Current: 0.600(72hrs/mA)
- Power Density: 931(W/kg)
- Max Energy: 0.1616(W.h)
- Energy Density: 6.40(Wh/kg)
| Part Number | Rated Voltage(V) | Rated Cap. (F) | Size | ESR AC(1kHz/mΩ) | ESR DC(1kHz/mΩ) | Max. Peak Current(A) | Max. Leakage Current(72hrs)(mA) | Power Density(W/kg) | Max. Energy(w.H) | Energy Density (Wh.kg) |
| HLP2R3M227TZ2245 | 2.3 | 220 | 22*45 | 15 | 27 | 36.46 | 0.600 | 931 | 0.1616 | 6.40 |
| HLP2R3M307TZ2245 | 2.3 | 300 | 22*45 | 14 | 25 | 40.59 | 0.700 | 907 | 0.2204 | 7.87 |
| HLP2R3M307TZ2250 | 2.3 | 300 | 22*50 | 13 | 23 | 43.67 | 0.700 | 863 | 0.2204 | 6.89 |
| HLP2R3M607TZ3060 | 2.3 | 600 | 30*60 | 12 | 21.6 | 49.43 | 1.000 | 487 | 0.4408 | 7.30 |
| HLP2R3M807TZ3560 | 2.3 | 800 | 35*60 | 10 | 18 | 59.74 | 1,500 | 468 | 0.5878 | 7.80 |
| HLP2R3M907TZ3566 | 2.3 | 900 | 35*66 | 8 | 15 | 71.38 | 1.800 | 554 | 0.6613 | 8.66 |
