Product Parameter Type: Farad Capacitors Sleeve Color: Blue sleeve or customized Capacitance:  12F Rated Voltage: 2.7 V Surge Voltage: 2.85 V Operate Temperature Ranges: -40℃～+70℃ Capacitance Tolerance: ±20% or required value Size(D*L/Mm):  12.5*25mm Lead Pitch(Mm):   5mm AC Impedance (1KHZ):  40mΩ Maximum Operating Current(△T=15℃): 1.66A Maximum Peak Current:  9.42A Maximum Leakage Current(72hrs): 0.040 mA Power Density:  3995(W/Kg) Maximum Storage Energy: 0.0132W.h Energy Density: 3.61(W.H/kg) Weight(G): 0.004Kg Packing: Bulk Packing

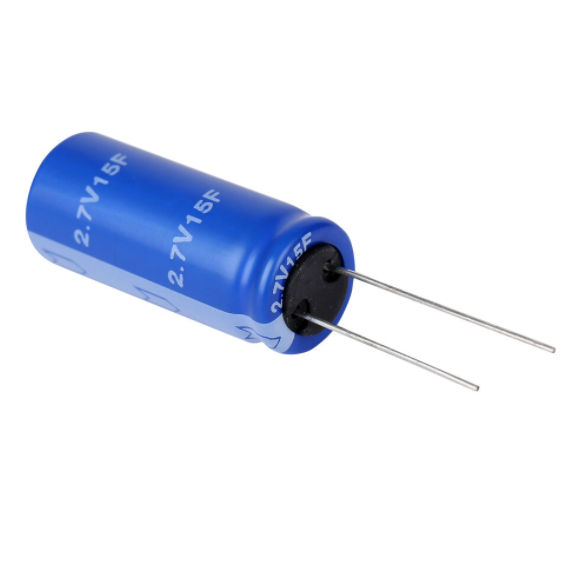

2.7V 15F Super capacitor dimension (mm)
D(±1.0)	12.5
L(±1.5)	25.0
d(±0.05)	0.60
P(±0.5)	5.0

The facility have whole series of super capacitors, contact us if you could not find the right parts you need.
