Product Description
| Operating temperature | -25°C~70°C |
| Rated voltage | 5.0 / 5.5VDC |
| Surge Voltage | 6.0VDC |
| Max Capacitance tolerance | -20%~50% |
| Temperature Characteristics | +70°C Capacitance drop/Capacitance ≤30%,ESR≤100% of the specified value at 25°C-25°C Capacitance drop/capacitance ≤50%,ESR≤400% of the specified value at 25°C |
Specification
| ITEM | Specification |
| Rated Volatge(UR) | 5.5V |
| Max. Surge Voltage | 6.0V |

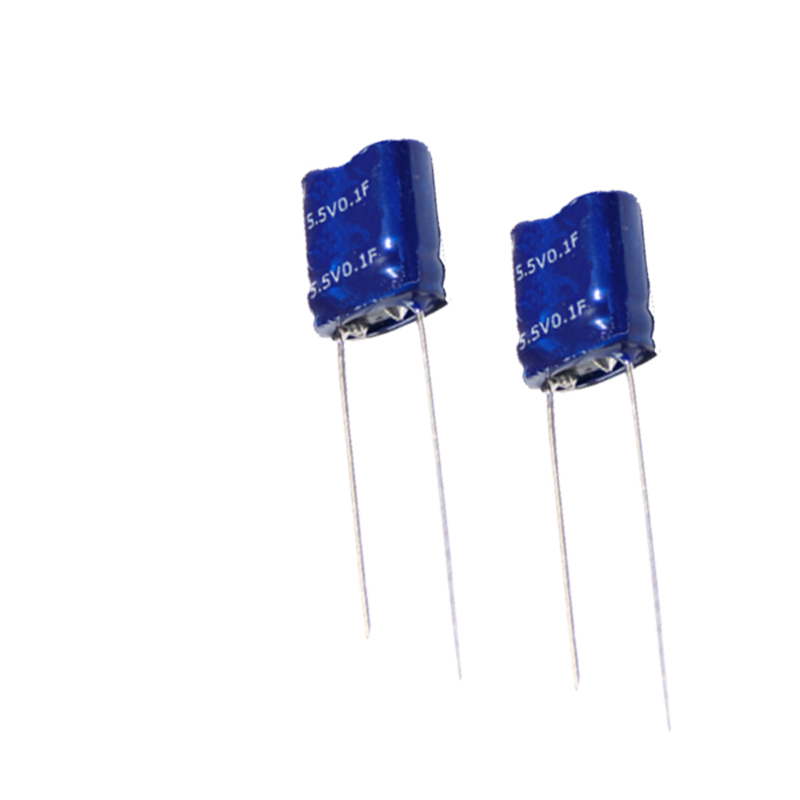

| Nominal Capacitance(C) | 0.10F |
| Capacitance Tolerance | -2 0%～+50% |
| Operating Temperature Range | -40℃～+65℃ |
| Maximum Equivalent Series Resistance，RAC(1kHz) | 1200 mΩ |
| Maximum Leakage Current(72hrs) | 0.001 mA |
| Maximum Operating Current(△T=15℃) | 0.25 A |
| Maximum Peak Current | 0.2 A |
| Maximum Storage Energy | 0.0005 Wh |
| Power density | 1124 W/kg |
| W(±1.0) 11.0 |
| D(±1.0) 5.5 |
| L(±1.5) 11.0 |
| d(±0.05) 0.6 |
| P(±0.5) 6.8 |
| Part Number | Rated Voltage(V) | Rated Cap. (F) | Size | ESR AC(1kHz/mΩ) | ESR DC(1kHz/mΩ) | Max. Operating Current(A) (△T=15℃) | Max. Peak Current(A) | Max. Leakage Current(72hrs)(mA) | Power Density(W/kg) | Max. Energy(w.H) | Energy Density (Wh.kg) |
| HLT5R5S104MA0511 | 5.5 | 0.1 | 11*5.5*11 | 1200 | 2400 | 0.0016 | |||||
| HLT5R5S224MA0711 | 5.5 | 0.22 | 13*7*11 | 1200 | 2400 | 0.0035 | |||||
| HLT5R0S334MA0816 | 5.5 | 0.33 | 17*8.5*16 | 1200 | 2400 | 0.006 | |||||
| HLT5R5S334MA0816 | 5.5 | 0.33 | 17*8.5*16 | 600 | 1200 | 0.006 | |||||
| HLT5R5X474MA0814 | 5.5 | 0.47 | 16*8*14 | 320 | 480 | 0.47 | 1.05 | 0.006 | 3601 | 0.0020 | 0.94 |
| HLT5R5S105MA0818 | 5.5 | 1.0 | 16*8*18 | 240 | 360 | 0.61 | 2.02 | 0.010 | 4001 | 0.0042 | 1.67 |
| HLT5R5S155MA0822 | 5.5 | 1.5 | 16*8*22 | 200 | 300 | 0.74 | 2.84 | 0.012 | 3974 | 0.0063 | 2.07 |
| HLT5R5S255MA0827 | 5.5 | 2.5 | 16*8*27 | 180 | 270 | 0.87 | 4.10 | 0.015 | 3283 | 0.0105 | 2.56 |
| HLT5R5S255MA1022 | 5.5 | 2.5 | 20*10*22 | 150 | 225 | 0.97 | 4.40 | 0.015 | 3201 | 0.0105 | 2.08 |
| HLT5R5M355MA1027 | 5.5 | 3.5 | 20*10*27 | 120 | 180 | 1.20 | 5.90 | 0.020 | 3492 | 0.0147 | 2.55 |
| HLT5R5M505MA1027 | 5.5 | 5.0 | 20*10*27 | 120 | 180 | 1.20 | 7.24 | 0.030 | 3492 | 0.0210 | 3.64 |
| HLT5R5M505MA1B22 | 5.5 | 5.0 | 25*13*22 | 90 | 135 | 1.42 | 8.21 | 0.030 | 3461 | 0.0210 | 2.70 |
| HLT5R5M755MA1B27 | 5.5 | 7.5 | 25*13*27 | 80 | 120 | 1.66 | 10.86 | 0.040 | 3741 | 0.0315 | 3.90 |
| HLT5R5M106MA1B32 | 5.5 | 10 | 25*13*32 | 70 | 105 | 1.93 | 13.41 | 0.055 | 3658 | 0.0420 | 4.45 |
| HLT5R5M1B6MA1627 | 5.5 | 12.5 | 32*16*27 | 50 | 75 | 2.41 | 17.74 | 0.068 | 2955 | 0.0525 | 3.21 |
| HLT5R5M156MA1632 | 5.5 | 15 | 32*16*32 | 40 | 60 | 2.92 | 21.71 | 0.075 | 3350 | 0.0630 | 3.49 |
| HLT5R5M256MA1842 | 5.5 | 25 | 36*18*42 | 32 | 48 | 3.96 | 31.25 | 0.105 | 2739 | 0.1050 | 3.80 |
| HLT5R5M506MA1862 | 5.5 | 50 | 36*18*62 | 26 | 39 | 5.30 | 46.61 | 0.240 | 2062 | 0.2101 | 4.65 |
